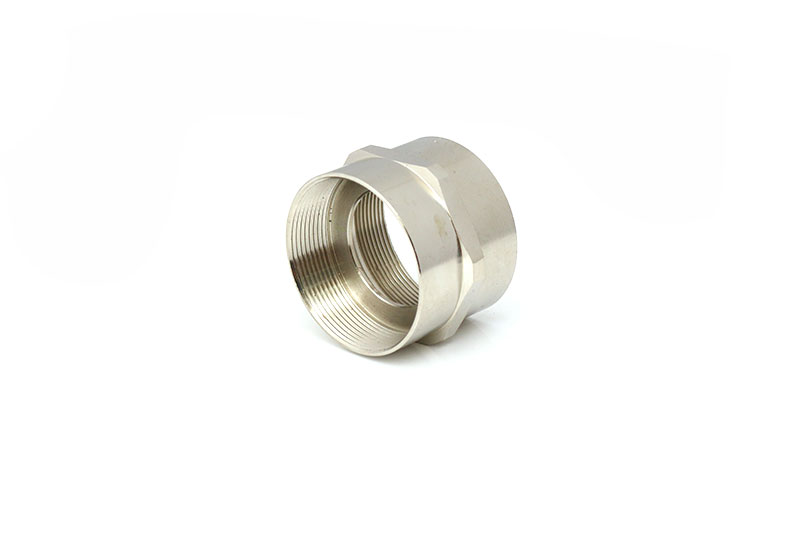

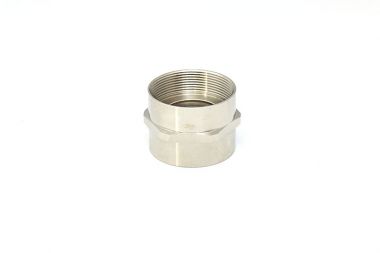

VBM Metal coupling sleeve with inner thread
Category: Explosion-proof Grand Head
Product details
Product Overview
Material: brass nickel plated
Structure Chart
Technical Parameter
VBM-M Metric Thread
| Artice no. | Inner Thread | Wrench size(mm) | D(mm) | Packet units |
| VBM-M16 | M16*1.5 | 20 | 18 | 50 |
| VBM-M20 | M20*1.5 | 24 | 22 | 50 |
| VBM-M25 | M25*1.5 | 28 | 22 | 50 |
| VBM-M27 | M27*2.0 | 30 | 22 | 50 |
| VBM-M32 | M32*1.5 | 36 | 24 | 12 |
| VBM-M4O | M40*1.5 | 45 | 30 | 12 |
| VBM-M50 | M50*1.5 | 55 | 35 | 9 |
| VBM-M63 | M63*1.5 | 67 | 42 | 5 |
VBM-P PG Thread
| Artice no. | Inner Thread | Wrench size(mm) | D(mm) | Packet units |
| VBM-P7 | PG7 | 14 | 15 | 50 |
| VBM-P9 | PG9 | 17 | 15 | 50 |
| VBM-P11 | PG11 | 20 | 18 | 50 |
| VBM-P13.5 | PG13.5 | 22 | 22 | 50 |
| VBM-P16 | PG16 | 24 | 22 | 50 |
| VBM-P21 | PG21 | 30 | 24 | 50 |
| VBM-P29 | PG29 | 40 | 30 | 12 |
| VBM-P36 | PG36 | 50 | 35 | 9 |
| VBM-P48 | PG48 | 65 | 42 | 5 |
VBM-G Thread
| Artice no. | Inner Thread | Wrench size(mm) | D(mm) | Packet units |
| VBM-G1/4 | G1/4 | 17 | 22 | 50 |
| VBM-G3/8 | G3/8 | 20 | 18 | 50 |
| VBM-G1/2 | G1/2 | 24 | 30 | 50 |
| VBM-G3/4 | G3/4 | 30 | 24 | 50 |
| VBM-G1 | G1 | 36 | 24 | 12 |
| VBM-G1 1/4 | G1 1/4 | 45 | 26 | 12 |
| VBM-G1 1/2 | G1 1/2 | 52 | 30 | 9 |
| VBM-G2 | G2 | 65 | 38 | 9 |
| VBM-G2 1/2 | G2 1/2 | 80 | 38 | 5 |
